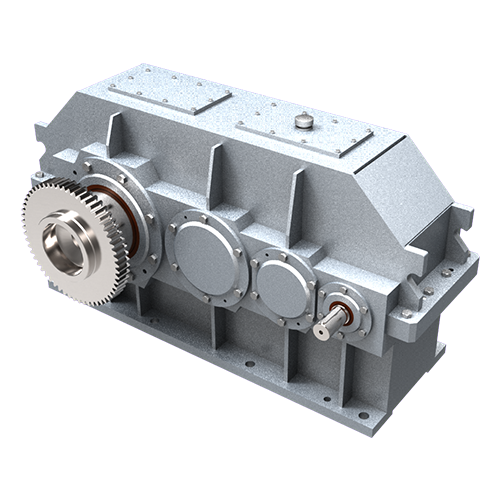

QY Type Cranes And Hoists Gear Reducer Product Overview

Basic Technical Parameters

Power Range: 9.5–1750kW

Reduction Ratio Range: 16–400

Maximum Output Torque: 355–14000kN·m

Product Introduction

QY series heavy-duty hardened cylindrical gear reducer is specially designed for lifting, traveling, luffing and slewing mechanisms of various cranes and electric hoists. It is divided into QYS three-support type and QYD foot-mounted base type, with 3-stage, 4-stage and combined 3+4-stage transmission structures available. Adopting welded steel housing and precision carburized grinding gears, this reducer delivers ultra-large torque output under heavy shock and alternating loads, featuring stable bidirectional operation and strong environmental adaptability for long-cycle industrial lifting equipment.

Core Advantages

1. Ultra-high heavy-load bearing capacity
   Gears are made of premium low-carbon alloy steel with carburizing, quenching and precision grinding (tooth hardness HRC58–62), greatly improving overload and impact resistance, maximum output torque reaches 14000kN·m to meet super-large lifting demands.
2. Extremely wide ratio & power coverage
   Complete reduction ratios from 16 to 400 and power range of 9.5–1750kW, realizing flexible low-speed high-torque matching for all kinds of crane working conditions.
3. High transmission efficiency & stable running
   Multi-stage helical gear meshing with high contact ratio, single-stage efficiency up to 98%, overall efficiency 92%–96%. Low vibration and low noise even under frequent forward-reverse start-stop operation.
4. Rigid & durable welded housing
   Integrated steel plate welded shell with annealing stress relief treatment, high rigidity and anti-deformation; fully sealed structure with reliable anti-oil-leakage, stable working under -40℃~+45℃ environment.
5. Flexible diversified installation
   Two mainstream mounting structures: three-point support (QYS) and foot base (QYD), supporting horizontal, vertical and inclined installation to fit compact crane layout space.
6. Long service life & low maintenance
   Heavy-duty thickened rolling bearings and large-capacity lubricating oil chamber extend oil change cycle; wear-resistant gear pair ensures long-term continuous operation with fewer replacement parts.
7. Wide working adaptability
   Allow bidirectional rotation, gear linear speed ≤20m/s, input speed ≤1500rpm, suitable for harsh working scenes with dust, humidity and temperature fluctuation.

Application Fields

1. Crane & Hoisting Equipment
   Overhead cranes, gantry cranes, jib cranes, container port cranes, tower cranes, heavy electric hoists, lifting trolleys, luffing and slewing drive systems
2. Metallurgy & Mining Industry
   Mine lifting winches, mineral belt conveyors, rolling mill auxiliary transmission, ore stacking & reclaiming machinery.
3. Port & Logistics
   Container lifting equipment, bulk cargo unloaders, heavy stackers, ship deck cranes.
4. Construction & Hydropower
   Concrete mixing equipment, dam gantry cranes, engineering lifting machinery, large tunnel construction hoists.
5. Other Heavy-Duty Transmission Equipment
   Large agitators, heavy-duty material handling machines, metallurgical roller tables, bulk material processing machinery.

Reference Parameter Sample

Model: QY4D-250

Reduction Ratio: 250

Max Output Torque: 8200kN·m

Input Speed: ≤1450rpm

Output Speed: 5.8rpm
